Bafang 48V 750W Mid Motor Ebike Conversion Kits SCP BMS System Lithium Battery 12Ah Samsung Cell E-bike Electric Bicycle BBS02B

Brand Name BAFANG

Voltage 48V

Design Brushless

Wattage > 400w

Motor Type Side Hung Motor

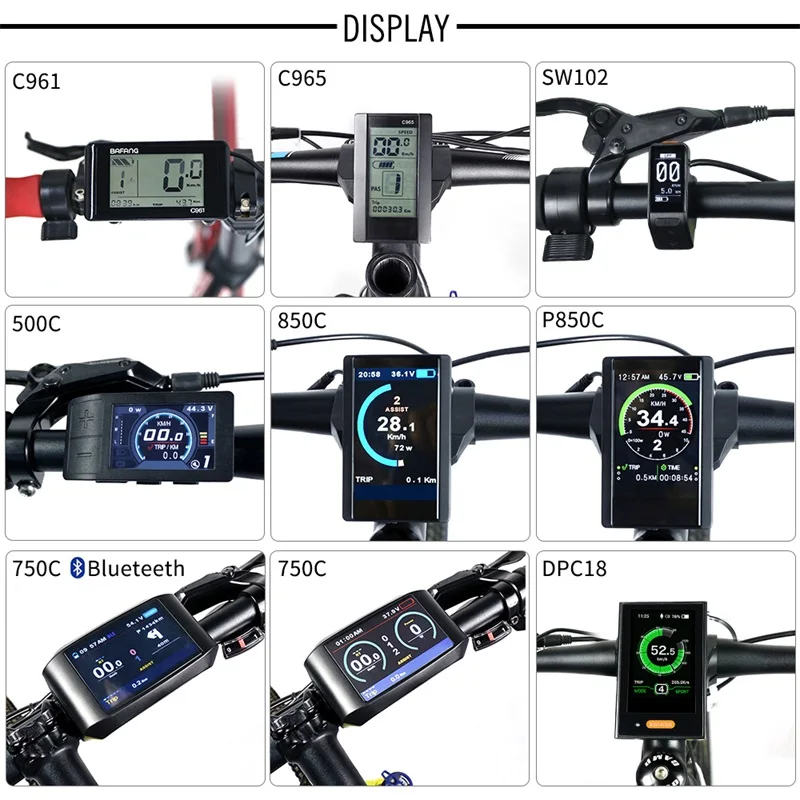

Bafang Display Option C965 C961 500C P850C SW102 DPC18

Chainwheel 44T/46T/48T/52T

Bafang/8FUN Motor Model MM G340.750 BBS02B

Motor Power Voltage 48V 750W Mid Drive Motor

For for the ebike Bottom bracket 68mm-73mm Conversion

Motor Waterproof Rate/Weight IP 65 / 4.24 Kg

Motor RPM 130-150

Battery Size 9*11*37 cm 3.5*4.3*14.5 inch

Battery Parameter / Weight 48V 12Ah 4.1 Kg

Battery Cell Built in Samsung 29ET 2900mah

SCP Short circuit protection

BMS Advanced Battery Management System

Motor Battery Warranty Time One Year

Purchase Note: This motor is fit for the Bike Bottom Brackets/BB is 68mm-73mm and the Inner Diamater of the bracket ( > 33.5mm) / should be not less than 33.5mm, please check carefully about your bicycle BB size. Motor Specification: Power:750WVoltage:48V Controller Current: 25A No Load Speed(RPM):140-160 Load Speed(RPM):120-135 MAX Torque:160 N.m Efficiency:>85% PAS SENSOR : Speed Sensor Reduction Ratio: 1 : 21.9 Centification:CE/EN 14764/ROHS Waterproof Grade:IP65 Net Motor Weight: 4.24kg Motor kits Weight:5.6-6.0kg Bracket bottom length:68mm Motor Operation Temperature:-20℃-45℃ Max speed:52km/h (75Kg Load,44T,different work condition different speed) Speed within 25-30km/h can help you ride further Max speed:48-50km/h (70Kg Load,44T,different work condition different speed) Speed within 25-30km/h can help you ride further 48V 12Ah Specifications: Normal Voltage: 48V Rated Capacity:12AH Battery Cell:Built in Samsung 29ET 2900mah.52PCS Array mode:13s4p Battery size:367.2*90.1*111mm Battery Weight:4.1KG Max Constant Discharge Current:30A Peak current:60A Charge voltage:54.6V Discharge cut off voltage:36.4V Way of Charge:CC/CV Cycle Life:1000 times Charge Temperature:-15-65℃ Discharge Temperature:-15-65℃ Protection Function:Over charge, Over discharge,Over current, Short circuit,Balance Battery Range:Keep25-30Km/hspeed can riding about42kmwithout pedaling.(Driver weight 90kg ride on ordinaryroads no losing power.Ifmotor work with rider pedaling can riding about84km) Packing list: BBS02B 48V 750W Mid Drive Motor * 1 pcs Speed Detecting Sensor + Magnet * 1 set Display * 1 DPC18 750C P850C C965 C961 SW102 Brake Lever * 1 Pair (We can change these to Hydraulic Brake Sensor for free,just leave me message ) Thumb Throttle * 1 pcs Screw and Nut Accessories * 1 set 1T4 Cable *1 pcs Crank* 1 pair 48V 12Ah Samsung Cells Battery And Charger * 1 Set Gifts:Install Wrench + XT60Cable * 1 set Label Stickers * 4pcs (For EU) Gaskets * 8 Pcs For Bottom Bracket 73mm Our Service: Change Display: Price for (C961=C965)(500C=SW102)(P850C=850C=750C),if you want other display please choice the same price one and remark iton your order or leave me message,i'd be happy to replace it for you. Sensor For Hydraulic Brakes:If you need this hydraulic brake sensor please remark it on your order or leave me message. Change Chain Wheel:Price for 44T 46T 48T 52T are the same,if you need other size remark on your order is ok. Warranty:​Our motor and Battery are one year.Other e-bikeparts is one month,maybe longer dueing toproblems. Overseas after-sales service station: Station in Netherland for EU , Station in Lac Vegas for US Canada. Message reply time : We will reply each clients message as soon as possible. About Tax: EU: If you need tax service please make order inTAX SERVICE 18 usd DDP SHIPPING SERVICE (Your TAX Will Paid By Us) Germany,France,Spain,Netherlands,Italy,Bulgaria,Belgium Bulgaria, Poland,Denmark,Finland,Portugal,Sweden,Slovakia,Slovenia,Greece,Hungary, Czech Republic ,Lithuania,Luxembourg,Romania,Ireland,Estonia, Austria Russian Federation,US,UK: Tax Service Include Other Country:You can remark Tax requirements on your order or leave me message. ​ Recommended E-bike Accessories Warranty Aggrement: Motor Kits,warranty time 12 month except phycial damage and wrong operation. Battery,warranty time 12 month except phycial damage and wrong operation. Accessories,30 days except phycial damage and wrong operation Return & Refund: It is our pleasure to see customers have fun with our products, if you decide to return the items within 15 days after receipt,we will refund you, the return items must be in original conditions. Feedback: Your satisfaction and positive feedback is very important for us, it will be very kind of you to leave us 5 star feedback, if you have any problems, don`t hesitate tocontact us, we will do our best to service with you.
